Name： High Quality Load Cell Mode FAB-80
Type： FAB-80
Detail





Capacity kg 0.5，0.6，1，2，3，5
Comprehensive Error       mv/v 0.03 0.02
Output Sensitivity mv/v 1.0±0.15 0.8±0.15
Nonlinearity  %FS  0.03 0.02
Repeatability %FS 0.03 0.02
Hysteresis %FS 0.03 0.02
Creep (3min)%FS  0.03 0.02
Zero Drift (1min)%FS 0.03 0.02
Temp. Effect on Zero %FS/10℃ ≤0.3 ≤0.2
Temp. Effect on Output %FS/10℃ ≤0.03 ≤0.02
Zero Output mV/V  ±0.1
Input Resistance Ω 350±50 1050±50
Output Resistance   Ω 350±50 1000±10
Insulation Resistance MΩ  ≥2000
Excitation Voltage V  ≤6 ≤12
Operation Temp. Range  ℃ 0--+50
Overload Capacity     %FS   150

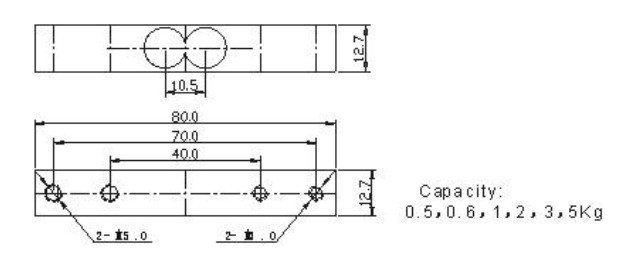

Outline:
