Name： High Quality Load Cell Mode FAB-75
Type： FAB-75
Detail



Illuminate ：

Detail：

Capacity kg 1，2，3，5
Comprehensive Error       mv/v 0.03 0.05
Output Sensitivity mv/v 1.0±0.1
Nonlinearity  %FS  0.03 0.05
Repeatability %FS 0.03 0.05
Hysteresis %FS 0.03 0.05
Creep (3min)%FS  0.03 0.05
Zero Drift (1min)%FS 0.03 0.05
Temp. Effect on Zero %FS/10℃ 0.3 0.5
Temp. Effect on Output %FS/10℃ ≤0.03 ≤0.05
Zero Output mV/V  ±0.1
Input Resistance Ω 1050±50
Output Resistance   Ω 1000±10
Insulation Resistance MΩ  ≥2000
Excitation Voltage V  ≤6
Operation Temp. Range  ℃ 0--+50
Overload Capacity     %FS   150

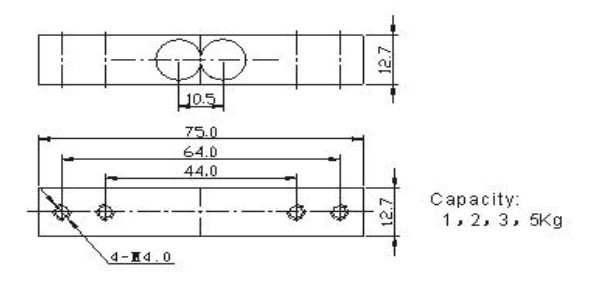

Outline:
