High Quanlity Load Cell Mode FAK-130 Kogean Electronic Technology Inc

Name： High Quanlity Load Cell Mode FAK-130

Type： FAK-130

Detail

Illuminate ：

Detail：

Capacity	kg	1-3,6-20,25-35,50-250
Accuracy Grade	%FS	0.02
Rated Output	mv/v	2.0±0.1
Nonlinearity	%FS	±0.02
Hysteresis	%FS	±0.02
Repeatability	%FS	±0.01
Creep	%FS/30min	±0.02
Input Resistance	Ω	410±10	1100±80
Output Resistance	Ω	350±3	1100±5
Insulation Resistance	MΩ	≥5000
Zero Balance	%FS	±1
Temp. Effect on Output	%FS/10℃	±0.02
Temp. Effect on Zero	%FS/10℃	±0.02
Compensated Temp. Range	℃	-10--+50
Operating Temp. Range	℃	-20--+60
Recommended Excitation Voltage	V	9--12（DC)
Maximum Excitation Voltage	V	6--18（DC)
Safe Overload	%FS	150
Ultimate Overload	%FS	300
Protection to		IP65
Cable Length	m	0.25(φ4mm)

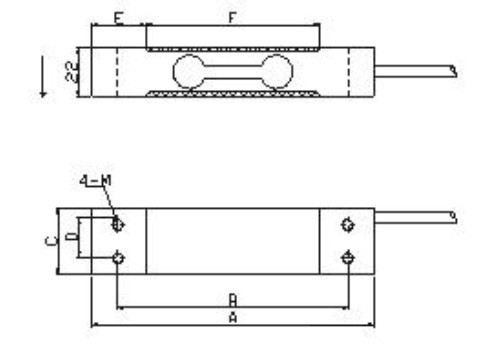

Outline:
